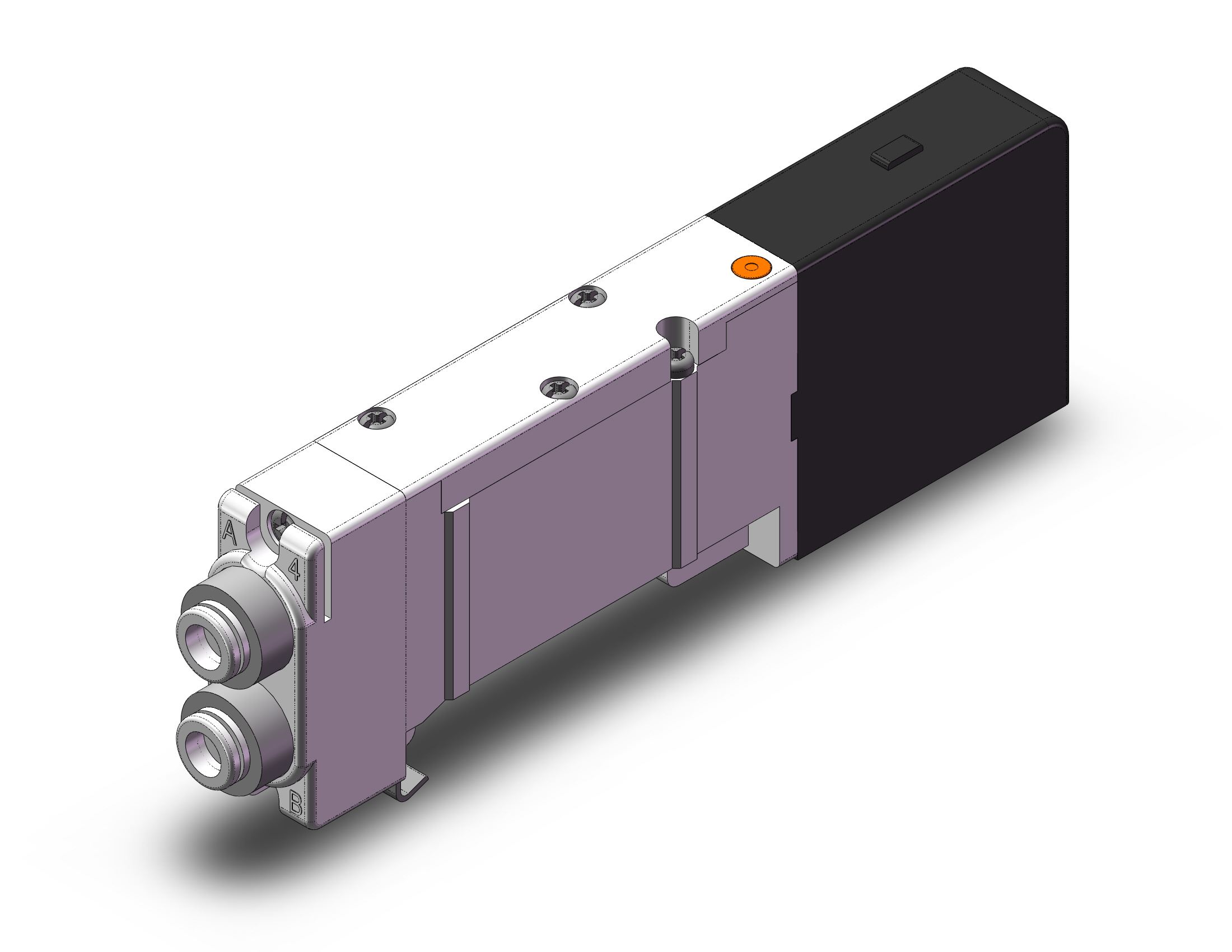

SQ2*3*, 2000 Series, 5 Port Solenoid Valve, Plug-in Type, New, SQ2131N-51-C6-Q
- Produttore:
- SMC
- Prezzo (IVA esclusa)
- € 64.57
- Codice Nuova Elva
- SQ2131N51C6Q
- Codice produttore
- SQ2131N-51-C6-Q
- Disponibilità
- Invia RdO
The 5 port solenoid valves series SQ was designed for applications which demand high speed, high frequency, long life and a precise response time. The SQ uses cassette style valves and manifolds, making it simple to increase or decrease the number of stations on a DIN rail. Valves are available with 12VDC or 24VDC rated voltage. Actuation options include 5 port single solenoid, 5 port double solenoid, and dual 3/2 ported. Manifold variations for the SQ plug-in series include EX510 Gateway-type serial transmission system, D-sub connector, flat ribbon cable connector, PC wiring system compatible flat ribbon cable, terminal block box, or a lead wire kit. The SQ plug lead units are available with D-sub connector, flat ribbon cable connector or PC wiring system compatible flat ribbon cable kits.
Features
Effective area mm 0.4W DC (34mA)
Specifications
| Height | 50 mm |
|---|---|
| Length | 109 mm |
| Weight | 140 g |
| Width | 10 mm |
Specifications | |
| Fluid | Air/inert gas |
| Maximum operating pressure | 0.7MPa |
| Ambient fluid temperature | -10 to 50 C |
| Weight | 140 g |
| Length | 109 mm |
| Width | 10 mm |
| Height | 50 mm |
